B3B-XH-A

The B3B-XH-A is a high-quality electronic component manufactured by JST. This component belongs to the Headers, Male Pins category, making it ideal for related applications.
We currently maintain a stock level of 31400 units, available at $0.02 per unit. As an authorized distributor, we guarantee the authenticity and quality of this product.
The official product description from the manufacturer's website is as follows: CONN HEADER VERT 3POS 2.5MM.
The detailed technical specifications of B3B-XH-A are as follows: Connector Type: Header Contact Finish - Mating: Tin Contact Finish - Post: Tin Contact Finish Thickness - Mating: - Contact Length - Mating: - Contact Length - Post: 0.134" (3.40mm) Contact Material: Brass Contact Shape: Square Contact Type: Male Pin Current Rating (Amps): 3A Fastening Type: Detent Lock Features: Board Guide Ingress Protection: - Insulation Color: Natural Insulation Height: 0.276" (7.00mm) Insulation Material: Polyamide (PA66), Nylon 6/6 Material Flammability Rating: UL94 V-0 Mounting Type: Through Hole Number of Positions: 3 Number of Positions Loaded: All Number of Rows: 1 Operating Temperature: -25°C ~ 85°C Overall Contact Length: - Pitch - Mating: 0.098" (2.50mm) Product Status: Active Row Spacing - Mating: - Shrouding: Shrouded - 4 Wall Style: Board to Cable/Wire Termination: Press-Fit, Solder Voltage Rating: 250V.

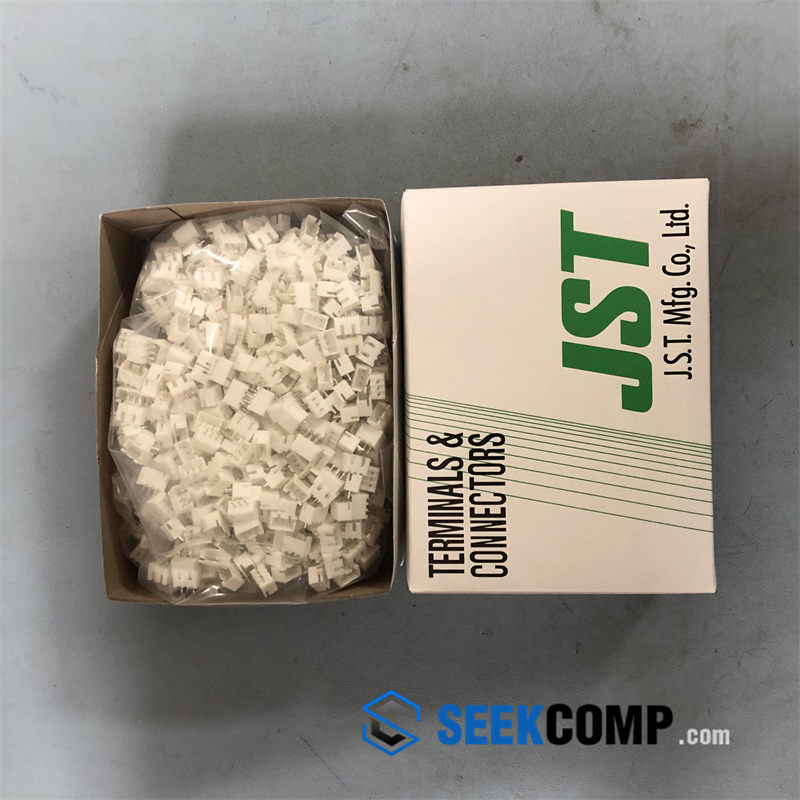

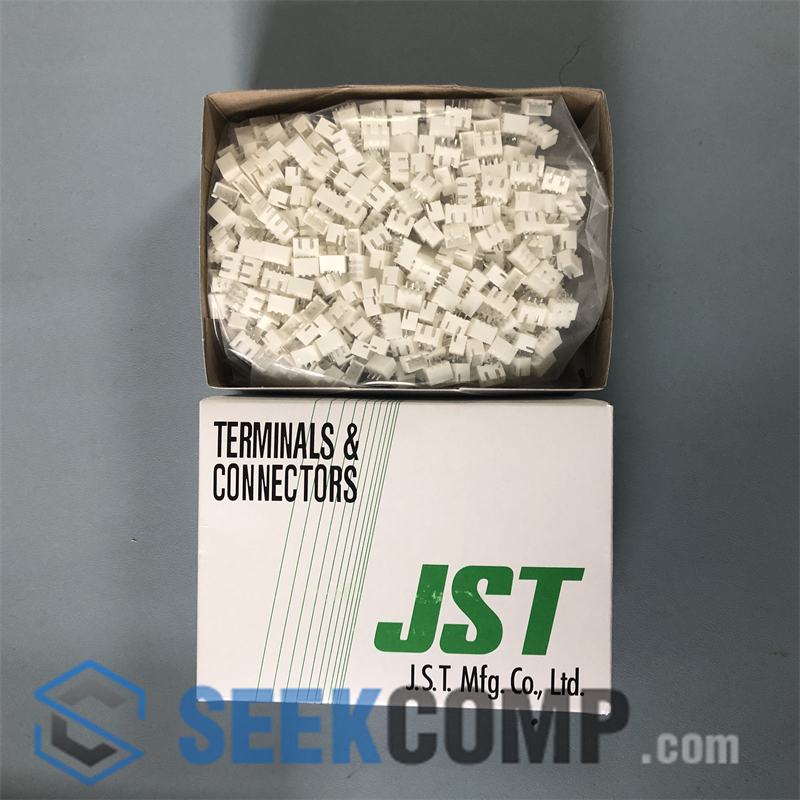

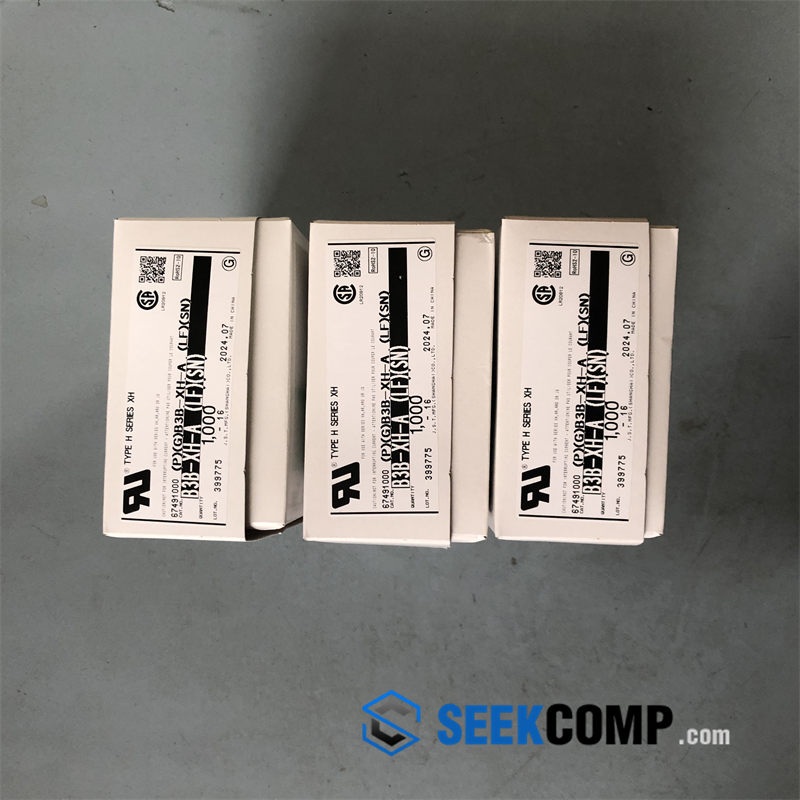

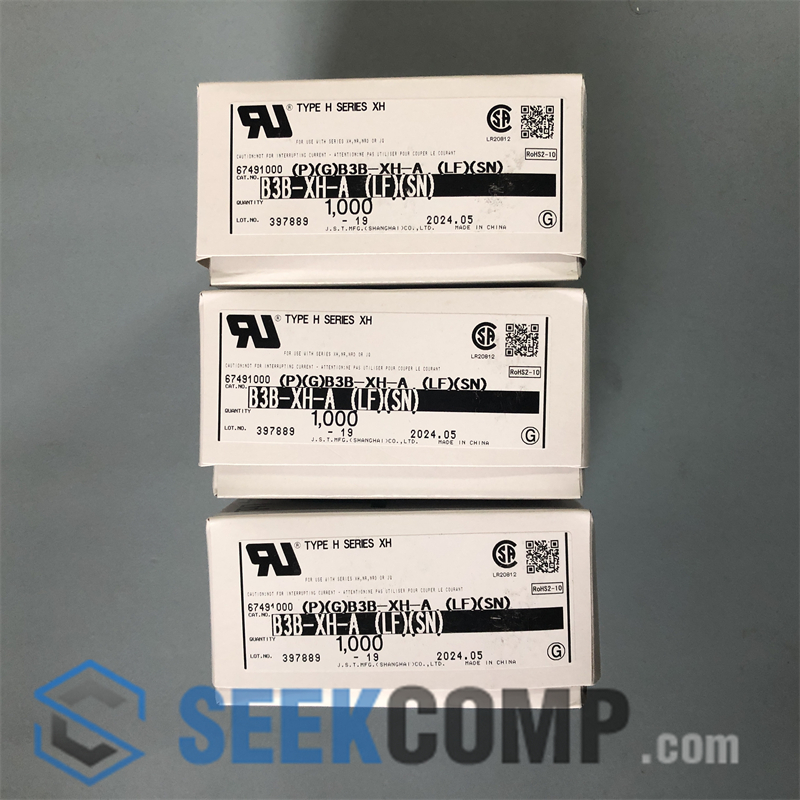

Seekcomp has successfully supplied B3B-XH-A to numerous clients worldwide. Below, we present a selection of actual product photos taken during our sales process for your reference. If you are interested in learning more about or purchasing B3B-XH-A, please contact us to receive the most competitive pricing and our premium quality assurance!

Request for Quote
